The perfect robotic automation for the NTX
- Loading and unloading by robot
- NTX 500
- Robot max. transfer weight: 7 kg (reference max. weight of workpiece per hand: 2 kg)
- max. workpiece diameter: Φ70 mm
- max. workpiece length: 65 mm
- NTX 1000
- Robot max. transfer weight: 12 kg (FANUC), 10 kg (KUKA) (reference max. weight of workpiece per hand: 2 kg)
- max. workpiece diameter: Φ70 mm
- max. workpiece length: 100 mm
Videos
Downloads
Technical data
Workpiece
Max. workpiece weight kg
Max. workpiece size mm
Capacity
Tray size mm
NLX 2500 | 750 2nd Gen.
NTX 500
NTX 1000
● available * Drawer type stocker
NTX 500
42,000 rpm compactMASTER TURN & MILL Spindle for high speed and micro machining
Max. workpiece diameter
350 mm
Max. workpiece length
580 mm
Max. bar capacity diameter
65 mm
Max. X-axis stroke
375 mm
Max. Y-axis stroke
150 mm
Max. Z-axis stroke
610 mm
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
6-sided complete machining
- at main and sub spindle with 8,000 rpm
- 4-axis machining by lower 16-station turret BMT 42 / 64 with 12,000 rpm
- 60 mm Y-axis for the lower turret
Workpieces up to ø 350 mm and 580 mm long
- Machining of flange parts with 350 mm diameter.
- Bar machining up to ø 65 mm
- Workpieces up to ø 90 mm and 580 mm turning length: when machining with lower turret
High-speed turn & mill spindle compactMASTER
- up to 42,000 rpm (30,000 rpm as standard), incl. 150 mm Y-axis
38-pocket tool magazine
- Capto C4 / HSK-T40 / KM40, optional 76 or 114
NTX 1000
Covering Extensive Range of Machining Across All Fields
Max. workpiece diameter
430 mm
Max. workpiece length
800 mm
Max. bar capacity diameter
65 mm
Max. X-axis stroke
455 mm
Max. Y-axis stroke
210 mm
Max. Z-axis stroke
800 mm
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
Simultaneous 5-axis machining
- Simultaneous 5-axis machining of complex parts with the direct drive motor (DDM) installed in the B axis
- The B-axis rotation range of 240° and rotation speed of 100 min–1, the X-axis travel of 455 mm (17.9 in.)
- Equipped with a Capto C5 tool spindle as standard, max. spindle speed of 12,000 min-1, 20,000 min–1 (Option)
High precision
- Thoroughly controlled thermal displacement by cooling oil circulation in the body
High rigidity
- High-rigidity bed and linear motion guide achieve high rigidity
Peripheral equipment
- Full range of optional equipment for automation, including an in-machine travelling robot and workpiece unloader

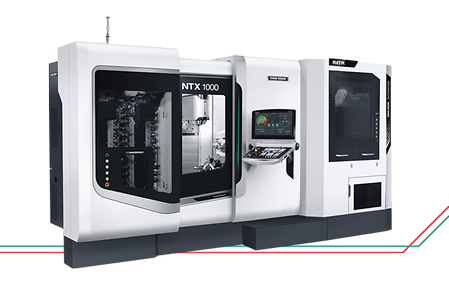

NTX 1000 – Shoulder Implant
NLX 2500 2nd Generation
Rebirth of DMG MORI’s bestseller – completely modernized
Max. workpiece diameter
366 mm
Max. workpiece length
708 mm
Max. bar capacity diameter
105 mm
Max. X-axis stroke
260 mm
Max. Y-axis stroke
120 mm
Max. Z-axis stroke
795 mm
Control & software alternatives
SIEMENS
MAPPS
Highlights
6-sided complete machining of workpieces up to Ø 366 x 708 mm with +/- 60 mm Y-axis
- MASTER spindles with a 36-month warranty and unlimited spindle hours
- Left spindle: 10" with 5,000 rpm and 843 Nm, or 12" with 3,000 rpm and 1,273 Nm optional
- Right spindle (optional): from 6" with 7,000 rpm and 95 Nm up to 10" with 5,000 rpm and max. 577 Nm
- Unparalleled heavy cutting performance on the left and right spindle thanks to box guideways in X-, Y- and Z-axis
+/- 60 mm, well positioned Y-axis for machining complex workpieces as standard
- BMT 60 & BMT 40 turret up to 12,000 rpm or 100 Nm and up to 20 tool stations (VDI = 12 stations)
- High-Speed up to 12,000 rpm and 86 Nm
- High-Torque up to 6,000 rpm and 100 Nm
GREENMODE for reduced energy consumption
- Less energy, less lubrication oil and less compressed air consumption
- Machine with 400 V for high energy efficiency
- Environment-friendly coolant and mist solutions for extended coolant life and resource saving
Perfect fit for automation and series production
- Plug & Play automation interface and wide range of automation solutions, also retrofitable
- Stainless steel and ceramic coated covers for perfect chip flow
- Perfect coolant & chip management with zero-sludgeCOOLANT tank & easy to maintain zeroFOG
- Extended coolant life thanks to 900l zero-sludgeCOOLANT pro with integrated sludge and oil collection system
- Universal selfcleaning chip conveyor system for reduced maintenance
